PT Rail™

Sale

A strong, sturdy and durable flip-up grab bar that is built to last in both the home and commercial bathroom. Explore Full Details

(Select) Rail Finish

(Select) Side

Both Sides
Left Side
Right Side

(Select) Length

Clear

45 Days Satisfaction Guarantee

DETAILS

DESCRIPTION & FEATURES

Rock solid support.

A strong, sturdy and durable flip-up grab bar that is built to last in both the home and commercial bathroom. The rail swings up to rest against the wall when not in use so it saves space, but the rail holds its position – even halfway up – which means it won’t fall down when you don’t expect it to.

36″ PT Rails – please contact us for availability at 888-619-9992 for availability

Product Features

Ergonomic safety at hand.

An innovative offset rail helps avoid wrist strain when you’re sitting down or standing up from a seated position.

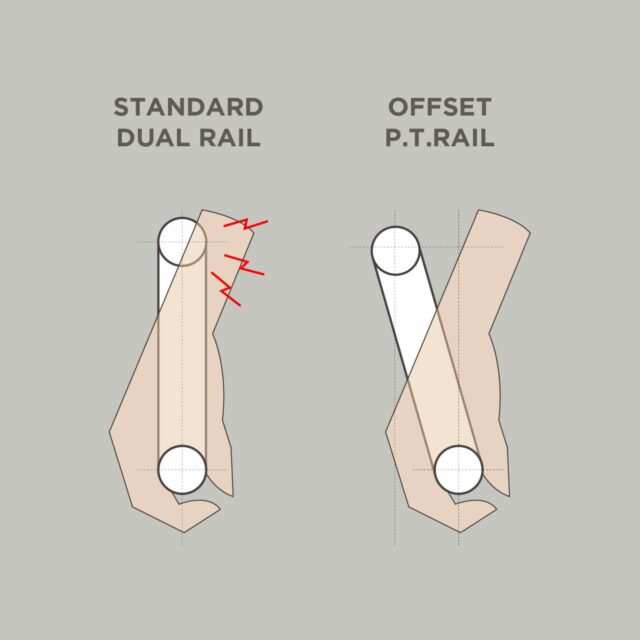

An Illustration, showing how the offset is more ergonomic and won't cause wrist injury

Holds steady.

The rails holds its position - even half way up. No need to lock it against the wall to keep it from falling down unexpectedly causing an injury.

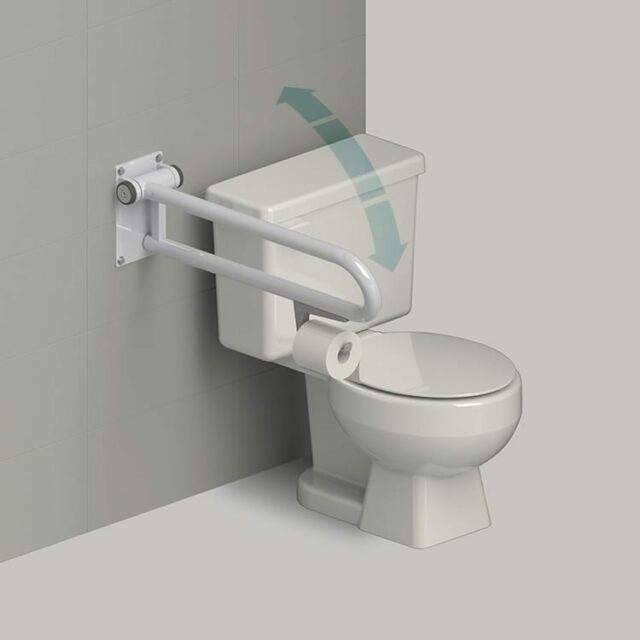

PT Rail illustration showing how the rail folds up and down

PRODUCT VIDEOS

Instructions Technical Data Sheets

SPECIFICATIONS

Tech Specs

Specifications subject to change without notice. Product not intended for outdoor use.

Material

Alloy steel or Stainless Steel

Finish

PCW: Anti-microbial powder coat paint (white) SS: Brushed stainless

Weight Capacity

400lbs / 181kg

Rail Diameter

1.50" / 38mm

Rail Length

28" / 711mm, 32"/813mm, 36"/914mm

Wall Plate

5.5x9" / 140x229mm

Warranty

Limited Lifetime Warranty

Part Numbers

28" Length, White Finish, Left Side: PT-WR28L-PCW
32" Length, White Finish, Left Side: PT-WR32L-PCW
36" Length, White Finish, Left Side: PT-WR36L-PCW
28" Length, White Finish, Right Side: PT-WR28R-PCW
32" Length, White Finish, Right Side: PT-WR32R-PCW
36" Length White Finish, Right Side: PT-WR36R-PCW
28" Length, Stainless Finish, Left Side: PT-WR28L-SS
32" Length, Stainless Finish, Left Side: PT-WR32L-SS
28" Length, Stainless Finish, Right Side: PT-WR28R-SS
32" Length, Stainless Finish, Right Side: PT-WR32R-SS

FREQUENTLY ASKED QUESTIONS (FAQ’s)

Can’t Find Your Question Below? Just Chat Us!

No. There is not a distinct locking mechanism, the PT Rail features a tension hinge which holds the rail in position (even halfway up). It is not possibly for the rail to inadvertently fall, causing an impact injury.

Yes. We only recommend the the stainless steel finish version for outdoor applications. It is built for full wet applications such as wet rooms, showers and humidity. Note: the white finish is carbon steel.

No. All 4 mounting points of the PT Rail must secure to structural wood. The (supplied) lag bolts must be installed into structural wood framing. If the wall is concrete, appropriate wall anchors and bolts are required (not included).

PT Rail's have offset rails, and therefore left and right models. When sitting on the toilet, the left PT Rail is on your left side, and the right PT Rail is in your right side.

Generally, hands will not slip when using the PT Rail as intended (i.e. pushing downwards on the horizontal rail). If required, consider applying HealthCraft's Grip Strips (textured tapes) for improved gripping.
